Custom Hydraulic Hose Assemblies • Built to Order • Free Shipping Nationwide

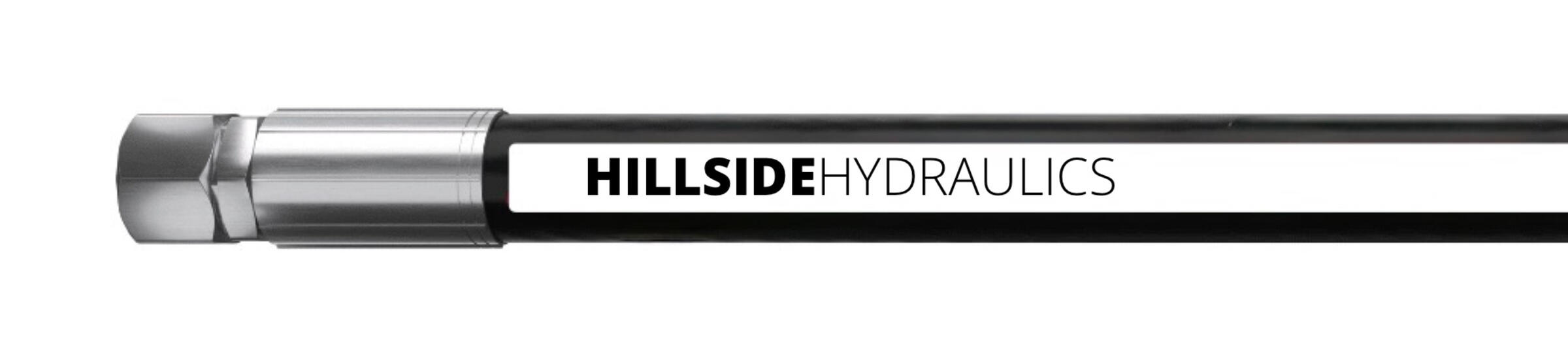

Custom hydraulic hose assemblies built to meet or exceed industry standards, with no order minimums, no assembly fees, and free shipping anywhere in the USA.
Buy Direct to Save • Free U.S. Shipping
Hose Assembly Guide
Follow these three steps when requesting a hose assembly to ensure an exact match for your machine.
1 — Determine Hose Size (Inner Diameter)
Choose the hose inner diameter required (¼”, ½”, ⅝”, ¾”, etc.). Check printed markings on the old hose or measure the inside diameter at the fitting seat if you’re unsure.
2 — Measure Hose Length (Fittings Included)
Measure overall length in inches from end to end, including fittings.

• Straight fittings → tip-to-tip • 45° / 90° fittings → from centerline of bend to opposite tip • Note routing constraints or abrasion sleeve needs • If fittings are clocked, describe angle relationships
3 — Identify Thread Type & Size (Each End)
Identify thread standards for each end: SAE (JIC / ORB / ORFS), ISO/metric, DIN, JIS / Komatsu, BSPP/BSPT, or NPT. Send clear photos of hose ends and machine ports if unsure — identification is included with every quote.
Get Your Quote
Enter your hose size, length, and fitting details. Most inquiries are answered within 24–48 hours.
Thread Identification Guide
A quick reference covering the major hydraulic thread families used worldwide.
SAE / North American
  • JIC 37° Flare
  • ORFS O-Ring Face Seal
  • ORB O-Ring Boss
  • NPT / NPTF Taper Pipe
  • Code 61 / Code 62 Flange
International / Metric
  • ISO 6149 Metric ORB
  • Metric 24° DKOL / DKOS
  • BSPP (G) Parallel
  • BSPT (R) Taper Pipe
  • DIN 7631 Metric 60° Cone
  • JIS 30° Metric Flare
  • JIS 60° Metric Cone
  • JIS PT / PF (parallel/tapered)
  • Komatsu Metric Flare
Japanese / OEM
  • JIS 30° Cone
  • JIS 60° Cone
  • Komatsu 24° / 30° OEM Metric
  • Kawasaki / Hitachi Metric Ports
Shipping & Return Policy
• Most orders ship within 1 business day.
• Free standard shipping anywhere in the USA.
• Returns accepted within 14 days if unused and in resellable condition.
• Buyer pays return shipping unless we made a mistake.
Order Errors & Replacements
If the error was ours (wrong fittings, wrong length, wrong thread), we will rebuild and ship a replacement assembly at no cost to you.
Release of Liability
Hydraulic assemblies must be installed by qualified personnel. Once delivered, responsibility for installation, routing, abrasion protection, and safe operation transfers to the buyer. Hillside Hydraulics is not liable for failures caused by misapplication, overpressure, improper installation, or use outside rated conditions.
Quote Turnaround
Most inquiries are quoted within 24–48 hours.
